Hardware Version 1 (Legacy)

The original version of the Door Controller connection board was constructed using standard stripboard (veroboard) and acted as an Arduino “shield”.

It had no native Ethernet connectivity, using serial (RS-232) only.

Photos

One of the first deployments of v1 was in Edinburgh; one of the original boards from this installation can be seen in the photos below.

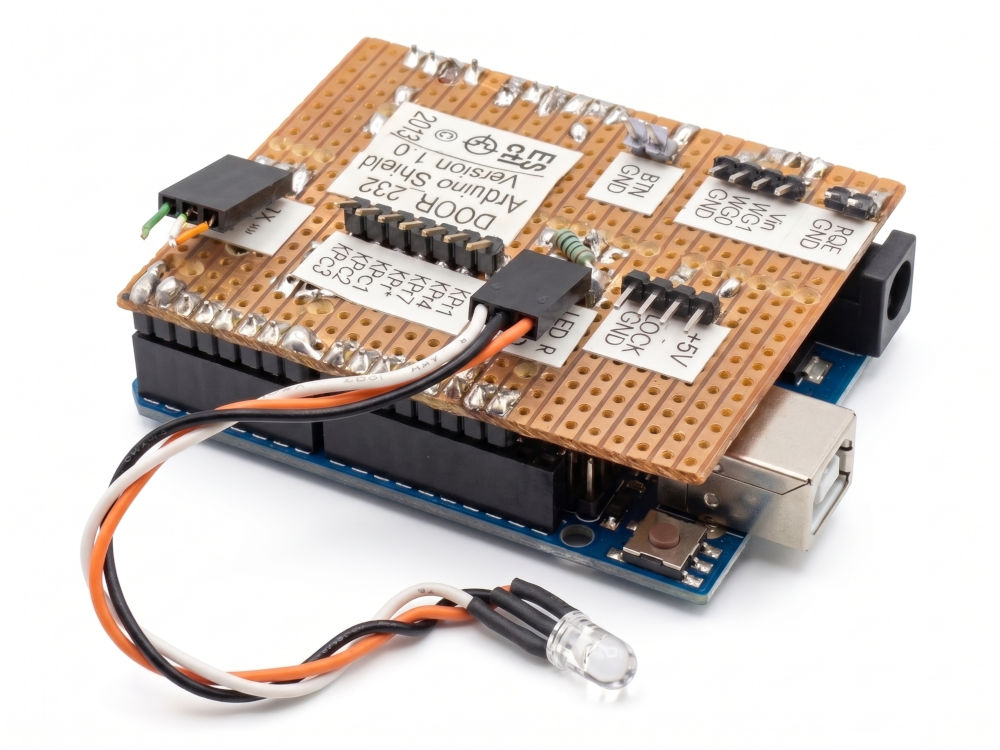

Original board from 2013 Original board from 2013, recovered after upgrade to v2

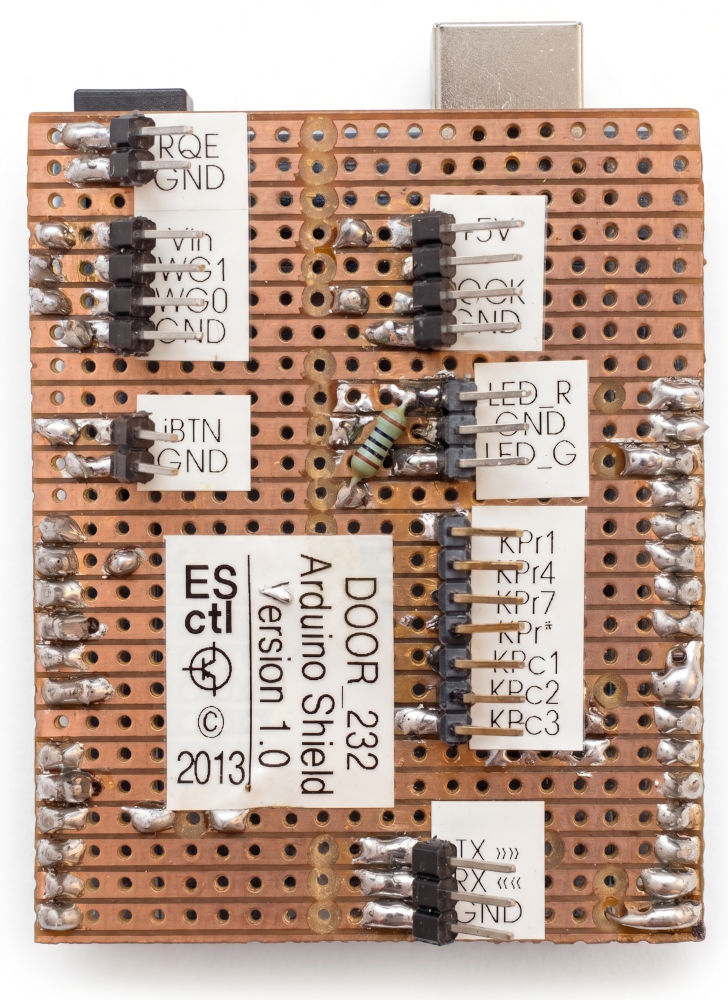

Top-down view of original shield board from 2013 Top-down view of the connection board.

The stripboard layout is available as a PDF Reference.

Pre-Arduino Shield

Before the board was manufactured as an Arduino shield, it was a standalone design using wire-wrap on stripboard, with an Atmel ATMEGA328 microprocessor, RS232 level shifter, and screw terminals for connections.

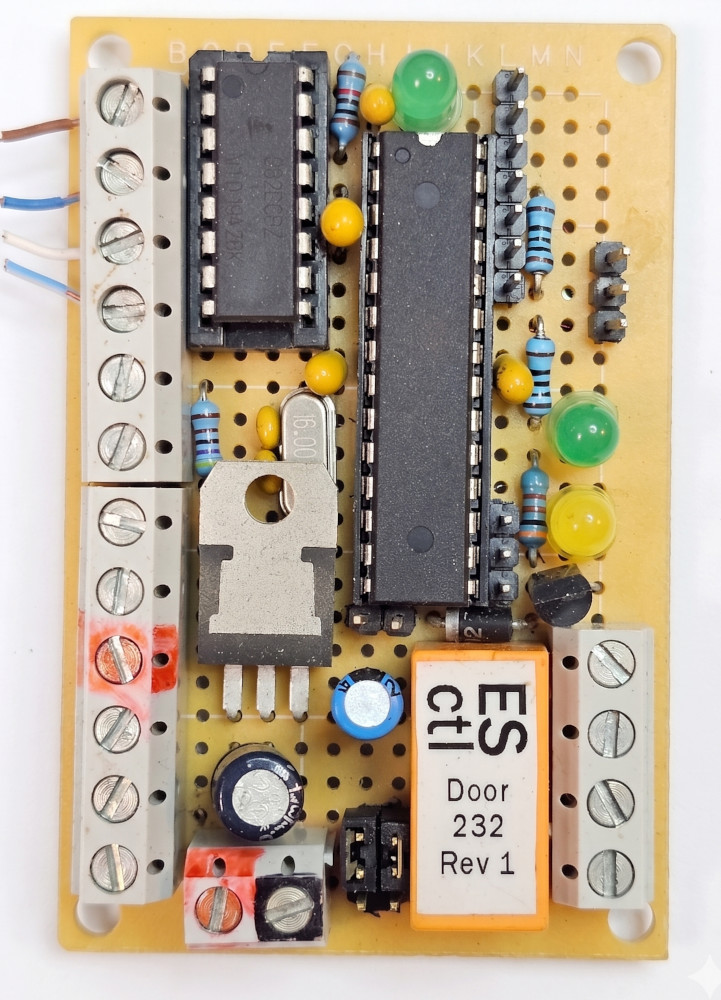

Original wire-wrap board Front view of the wire-wrap door controller board.

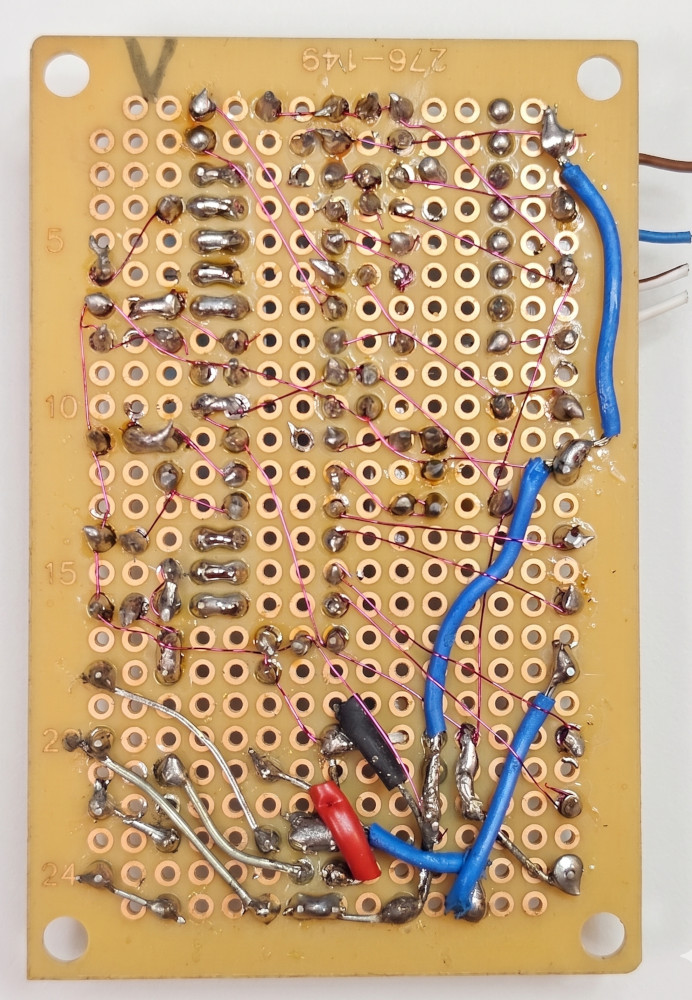

Original wire-wrap board (rear) Rear view of the wire-wrap door controller board.

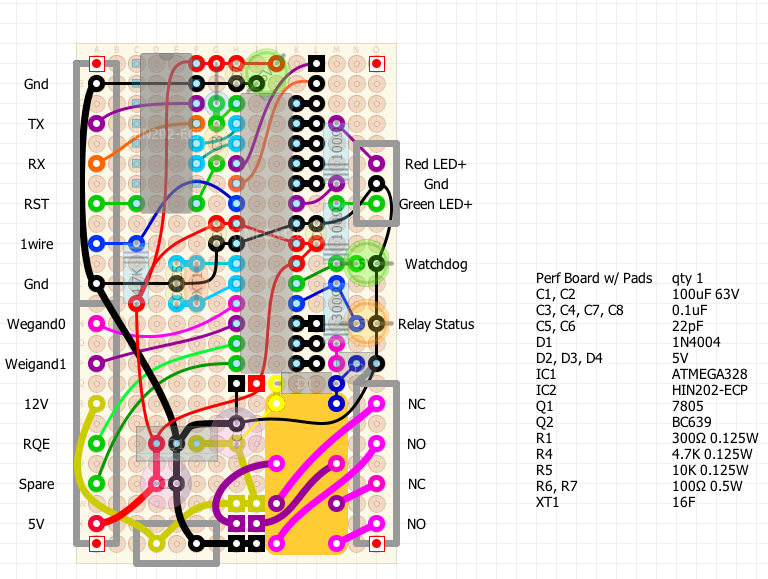

Door Controller Wirewrap Design Wire-wrap stripboard layout for the Door Controller connection board.
